Amateur Radio Station DL4FCH
14.04.2021
|
Amateur Radio Station DL4FCH |
14.04.2021 |
|
Rig |
|
HF-Station |
|
|
|
Icom IC-736 with Speaker SP-21 |
|
Frequency range: 10-160m, WARC, 6m |
|
Mode: AM, FM, SSB, CW |
|
RF Power output: 100 W |
|
Voltage: 230 V AC |
|
Further details: Automatic antenna tuner, Passband tuning, 500 Hz CW narrow filter |
|

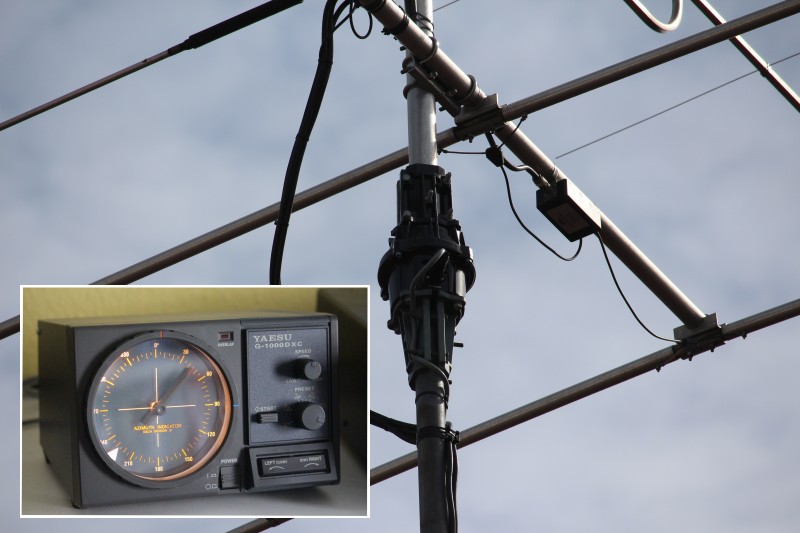

Rotary-System |
|
|
|
YAESU G-1000DXC |
|
|
|

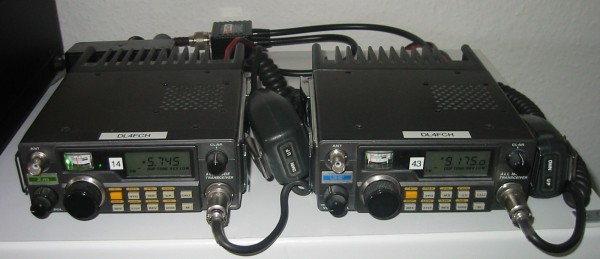

VHF- and UHF-Station |
|
|
|
|
|
|
|
| Yaesu FT-290 R II with PA FL-2025 |
Yaesu FT-790 R II with PA FL-7025 |
| Frequency range: 144 - 146 MHz |
Frequency range: 430 - 440 MHz |
| Mode: FM, SSB, CW |
Mode: FM, SSB, CW |
| RF Power output: 2,5 W (with PA 25 W) |
RF Power output: 2,5 W (with PA 25 W) |
| Voltage: 13,8 V DC |
Voltage: 13,8 V DC |
|
|
|
Elbug |
Keyer |

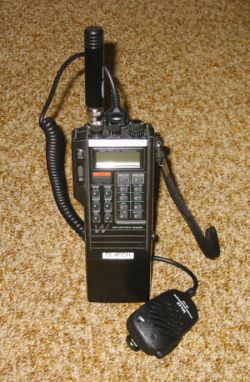

Portable Radio |
|
|
|
|
|

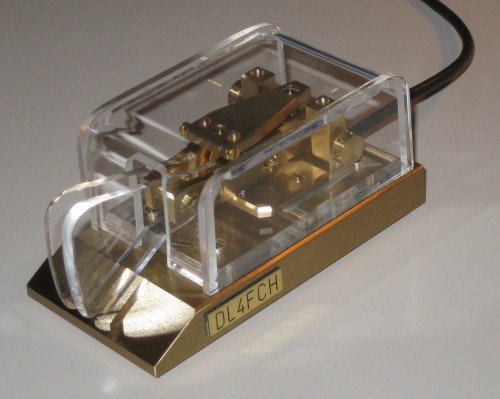

Elbug "Hallberg 1" (homebrew 1995) |
Keyer hand made mechanics from "Scheunemann", |
Standard C500 |
|
Details: Keyer mechanics from "Schurr", |
formerly "Schurr" More Info |
2m/70cm FM with 5 W output |
|
8 memory key, Automatic contest counter |
|
|
|
|
|

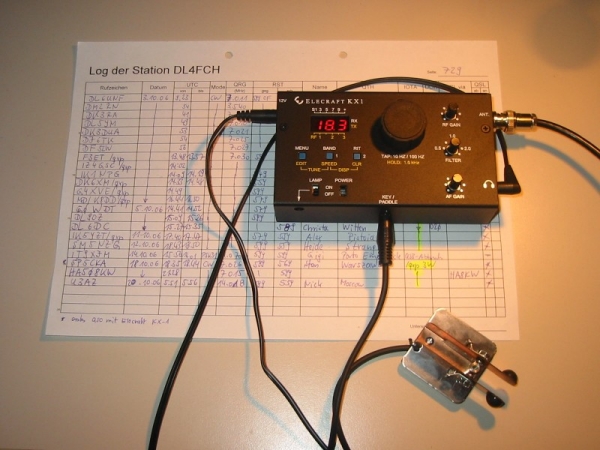

QRP-Station |
|
|
|
Elecraft KX-1 (homebrew 2006) |
|
Frequency range: 20m, 30m, 40m, 80m |
|
Mode: CW |
|
RF Power output: abt. 3 Watt |
|
Further details: Automatic antenna tuner |
|
|
| Hardware and Software: | |
| PC | Intel Core i5-3450 (Quad Core Prozessor) |
| OS | Windows 10 64bit |
| Ham-Software | Ham Office ME (Further info under: http://www.hamoffice.de) |
| MixW 3.2.102 (Furter info under: http://www.mixw.de) | |
| WSJT-X V2.0 from K1JT (Further Info under: https://physics.princeton.edu/pulsar/k1jt/wsjt.html) | |
| JTDX v17.9, based on WSJT-Xfrom K1JT (Further Info under: http://www.qrz.lt/ly3bg/JTDX/jtdx.html) | |
| SIM V6997 from ON4NB (Further Info under: http://www.on4nb.be/sim31.htm) | |
| ROS v7.4.0 from EA5HVK (Further Info under: https://rosmodem.wordpress.com) | |
| Fldigi v4.0.3 from W1HKJ & Associates (Further Info under: http://www.w1hkj.com) | |
| Modem | microHAM USB Interface III |
